一、为什么用 LLM Ops

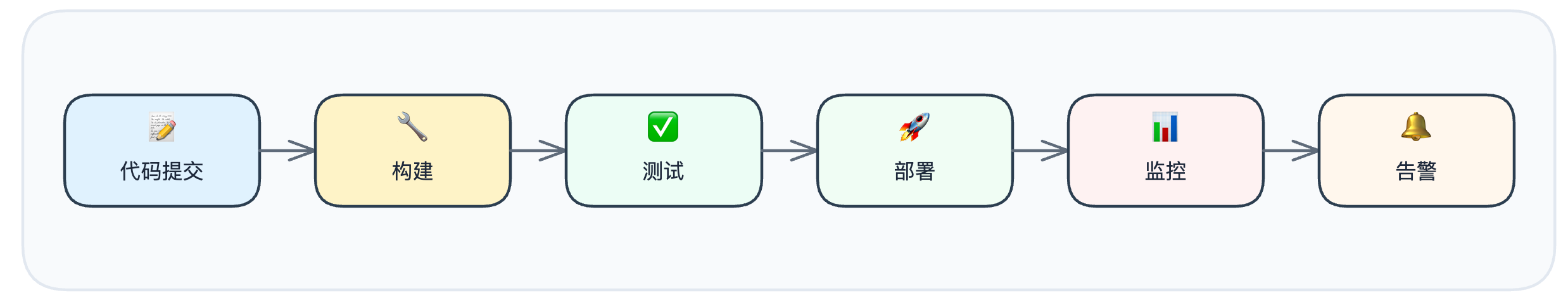

传统 DevOps 解决的是"代码从开发到上线"的问题，核心链路：
但在大模型时代，这条链路变了。你交付的不是代码，而是一个概率性输出的模型服务。它有自己的问题：
模型不是确定性的，同样的输入可能给出不同的输出
模型有版本，但版本的"好坏"不像代码那样用单测就能判定
模型调用的成本远高于普通 API，Token 是真金白银

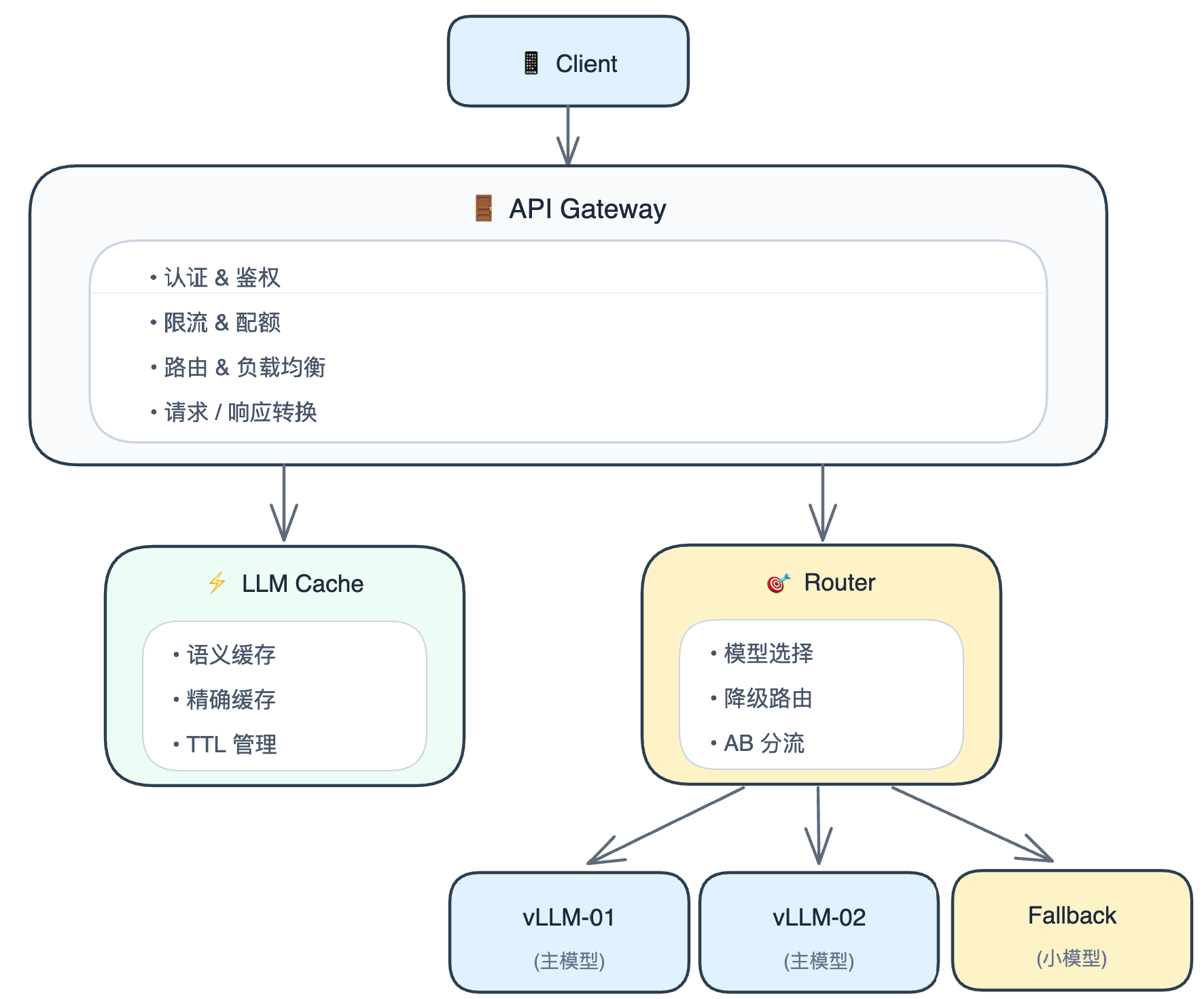

模型需要上下文管理、缓存、降级，传统网关搞不定
模型的评测不是 pass/fail，而是"够不够好"
所以我们需要一套新的工程化体系——LLM Ops。
二、LLM Ops 全景图

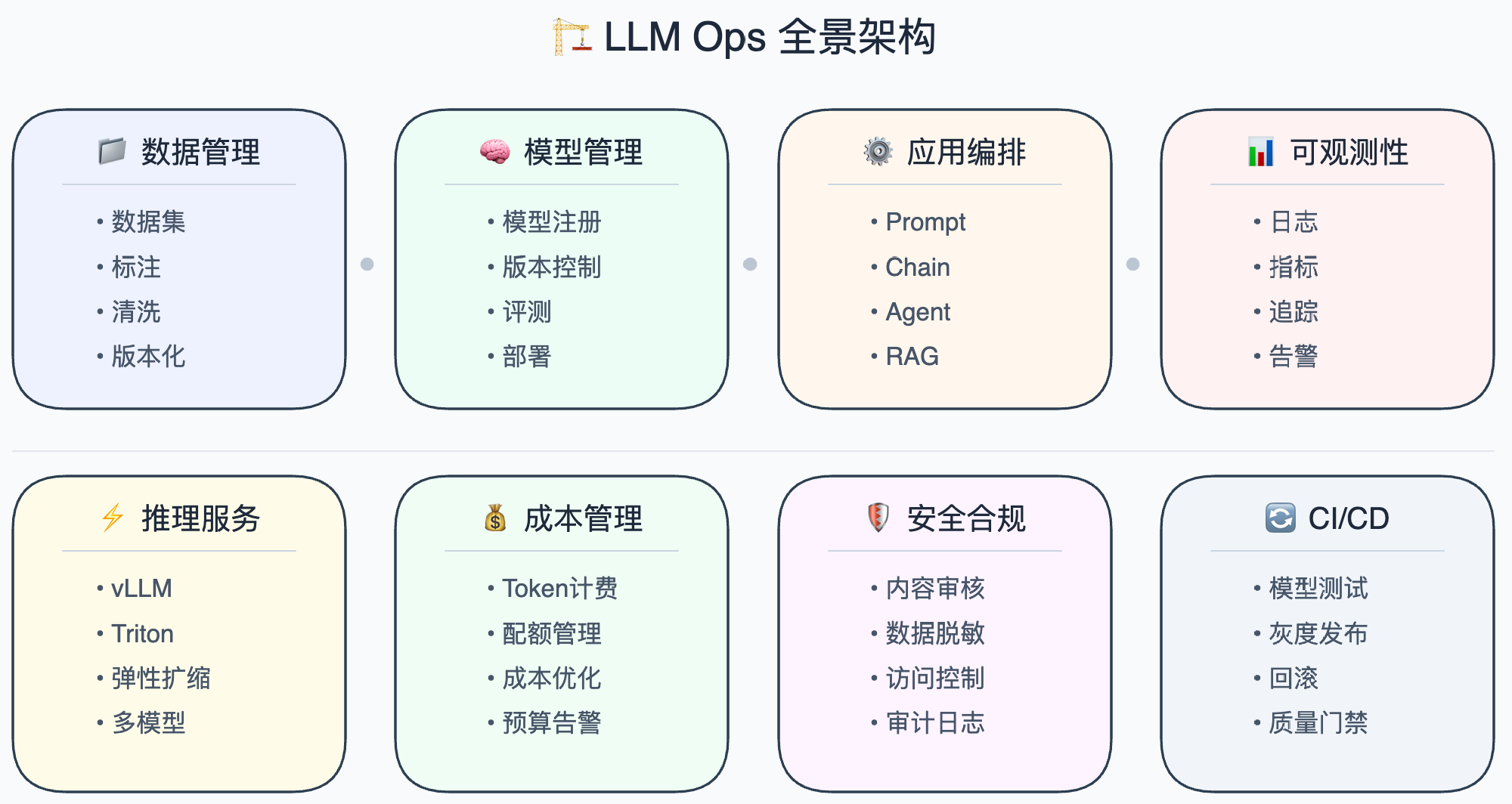

先上一张全景架构图，后面每个模块都会展开：
这 8 个模块构成了 LLM Ops 的完整闭环。下面逐一拆解。
三、数据管理
大模型的落地，数据是起点也是终点。训练需要数据，微调需要数据，评测需要数据，RAG 也需要数据。
3.1 数据集版本化
和代码一样，数据也需要版本管理。我们用 DVC（Data Version Control）来管理数据集：
# 初始化 DVC
dvc init
# 添加数据集
dvc add data/training_dataset_v1.jsonl
# 这会生成 .gitignore 和 .dvc 文件
git add data/training_dataset_v1.jsonl.dvc data/.gitignore
git commit -m "feat: add training dataset v1"
# 推送数据到远程存储（S3/OSS）
dvc remote add -d myremote s3://my-bucket/dvc-storage
dvc push.dvc 文件长这样：
outs:
- md5: a3f2b8c9d1e4f5a6b7c8d9e0f1a2b3c4
size: 52428800
path: data/training_dataset_v1.jsonl3.2 数据清洗 Pipeline
一个典型的数据清洗流水线：
import json
import re
from pathlib import Path
from concurrent.futures import ThreadPoolExecutor
def clean_text(text: str) -> str:
"""清洗文本：去除特殊字符、多余空格、HTML标签"""
text = re.sub(r'<[^>]+>', '', text) # 去HTML标签
text = re.sub(r'\s+', ' ', text) # 合并空格
text = text.strip()
return text
def validate_sample(sample: dict) -> bool:
"""校验单条数据质量"""
if not sample.get("prompt") or not sample.get("response"):
return False
if len(sample["prompt"]) < 10 or len(sample["response"]) < 20:
return False
if sample["prompt"].count("?") > 10:
return False # 疑似垃圾数据
return True
def process_file(input_path: Path, output_path: Path):
"""处理单个数据文件"""
valid_count = 0
invalid_count = 0
with open(input_path, 'r', encoding='utf-8') as fin, \
open(output_path, 'w', encoding='utf-8') as fout:
for line in fin:
try:
sample = json.loads(line.strip())
sample["prompt"] = clean_text(sample["prompt"])
sample["response"] = clean_text(sample["response"])
if validate_sample(sample):
fout.write(json.dumps(sample, ensure_ascii=False) + '\n')
valid_count += 1
else:
invalid_count += 1
except (json.JSONDecodeError, KeyError):
invalid_count += 1
print(f"[{input_path.name}] valid: {valid_count}, invalid: {invalid_count}")
def run_pipeline(input_dir: str, output_dir: str):
"""并行执行数据清洗"""
input_path = Path(input_dir)
output_path = Path(output_dir)
output_path.mkdir(parents=True, exist_ok=True)
files = list(input_path.glob("*.jsonl"))
with ThreadPoolExecutor(max_workers=4) as executor:
for f in files:
executor.submit(
process_file,
f,
output_path / f.name
)
if __name__ == "__main__":
run_pipeline("data/raw", "data/cleaned")3.3 数据血缘追踪
数据从哪来，经过了什么处理，用在了哪里——这些都需要追踪：
raw/web_crawl_20250501.jsonl
→ cleaned/cleaned_20250501.jsonl (清洗)
→ filtered/filtered_20250501.jsonl (质量过滤)
→ train_dataset_v3.jsonl (合并多源)
→ fine-tune job #42 (微调)
→ model my-llm:v3.2 (产出模型)我们用一个小工具来记录血缘关系：
from dataclasses import dataclass, field
from datetime import datetime
from typing import Optional
import hashlib
import json
@dataclass
class DataLineage:
"""数据血缘记录"""
data_id: str
source: str
transformations: list = field(default_factory=list)
parent_ids: list = field(default_factory=list)
created_at: str = field(default_factory=lambda: datetime.now().isoformat())
metadata: dict = field(default_factory=dict)
def add_transform(self, name: str, params: dict = None):
self.transformations.append(
{
"name": name,
"params": params or {},
"timestamp": datetime.now().isoformat(),
}
)
def compute_hash(self, filepath: str) -> str:
"""计算文件哈希作为唯一ID"""
h = hashlib.md5()
with open(filepath, "rb") as f:
for chunk in iter(lambda: f.read(8192), b""):
h.update(chunk)
return h.hexdigest()
# 使用示例
lineage = DataLineage(
data_id="dataset_v3",
source="web_crawl + manual_annotation",
parent_ids=["raw_20250501", "raw_20250515"],
metadata={"records": 50000, "language": "zh"},
)
lineage.add_transform("clean_text", {"remove_html": True})
lineage.add_transform("quality_filter", {"min_length": 20})
lineage.add_transform("deduplicate", {"method": "minhash"})
print(json.dumps(lineage.__dict__, indent=2, ensure_ascii=False))四、模型管理
4.1 模型注册中心
类似 Docker Registry，模型也需要一个注册中心。我们用 MLflow：
import mlflow
from mlflow.models import infer_signature
def register_model(
model_name: str,
model_path: str,
metrics: dict,
tags: dict = None,
description: str = "",
):
"""注册模型到 MLflow Model Registry"""
mlflow.set_tracking_uri("http://mlflow-server:5000")
mlflow.set_experiment(model_name)
with mlflow.start_run() as run:
# 记录指标
mlflow.log_metrics(metrics)
# 记录标签
if tags:
mlflow.set_tags(tags)
# 记录模型
mlflow.log_artifacts(model_path, "model")
# 注册到 Model Registry
result = mlflow.register_model(f"runs:/{run.info.run_id}/model", model_name)
# 添加描述
client = mlflow.tracking.MlflowClient()
client.update_model_version(
name=model_name, version=result.version, description=description
)
print(f"Model {model_name} v{result.version} registered")
print(f"Run ID: {run.info.run_id}")
return result
# 使用示例
register_model(
model_name="customer-service-llm",
model_path="./model_output",
metrics={"accuracy": 0.92, "bleu_score": 0.85, "rouge_l": 0.88, "latency_p95": 1.2},
tags={
"base_model": "Qwen2.5-7B",
"fine_tune_method": "LoRA",
"task": "customer_service",
},
description="客户服务微调模型v3，基于Qwen2.5-7B，LoRA微调，对话质量提升12%",
)4.2 模型版本策略
模型版本不像代码，不能简单用语义化版本。我们定义一套版本规则：
版本号格式: {base_model}_{major}.{minor}.{patch}_{lora_version}
示例:
qwen2.5-7b_3.2.1_lora-v5
├── qwen2.5-7b : 基座模型
├── 3 : 第3次完整微调（数据集变更）
├── 2 : 第2次增量微调（少量数据补充）
├── 1 : bugfix（修复特定case）
└── lora-v5 : LoRA适配器版本版本流转规则：
# model_version_policy.yaml
staging:
- 自动评测通过（准确率 > 阈值）
- A/B测试流量 5%
- 人工抽检 100条
production:
- staging 阶段运行 ≥ 3天
- P95 延迟 < 2s
- 用户负反馈率 < 2%
- 成本在预算内
rollback:
- 准确率下降 > 5%
- P99 延迟 > 5s
- 用户负反馈率 > 5%
- 自动回滚到上一版本4.3 模型评测
模型评测不是跑个 BLEU 就完了，需要多维度评估：
from dataclasses import dataclass
from typing import List
import json
import time
@dataclass
class EvalResult:
"""评测结果"""
model_version: str
dataset: str
metrics: dict
latency_stats: dict
sample_results: list
timestamp: str
class ModelEvaluator:
"""模型评测器"""
def __init__(self, model_client, eval_dataset_path: str):
self.model_client = model_client
self.eval_dataset_path = eval_dataset_path
self.eval_dataset = self._load_dataset(eval_dataset_path)
def _load_dataset(self, path: str) -> list:
dataset = []
with open(path, "r", encoding="utf-8") as f:
for line in f:
dataset.append(json.loads(line.strip()))
return dataset
def evaluate(self, model_version: str) -> EvalResult:
"""执行评测"""
latencies = []
results = []
correct = 0
for sample in self.eval_dataset:
start = time.time()
response = self.model_client.chat(
model=model_version,
messages=[{"role": "user", "content": sample["prompt"]}],
temperature=0.0, # 评测时固定温度
)
latency = time.time() - start
latencies.append(latency)
# 自动评测
is_correct = self._check_response(response, sample["expected"])
if is_correct:
correct += 1
results.append(
{
"prompt": sample["prompt"][:50],
"expected": sample["expected"][:50],
"actual": response[:50],
"correct": is_correct,
"latency": latency,
}
)
# 统计指标
latencies.sort()
eval_result = EvalResult(
model_version=model_version,
dataset=self.eval_dataset_path,
metrics={
"accuracy": correct / len(self.eval_dataset),
"total": len(self.eval_dataset),
"correct": correct,
},
latency_stats={
"p50": latencies[len(latencies) // 2],
"p95": latencies[int(len(latencies) * 0.95)],
"p99": latencies[int(len(latencies) * 0.99)],
"avg": sum(latencies) / len(latencies),
},
sample_results=results[:20], # 保留前20条详细结果
timestamp=time.strftime("%Y-%m-%d %H:%M:%S"),
)
return eval_result
def _check_response(self, response: str, expected: str) -> bool:
"""简单的响应匹配检查"""
# 实际项目中会用 LLM-as-Judge 或更复杂的评测逻辑
return expected.lower().strip() in response.lower().strip()五、应用编排
模型训练好了，但怎么用？这就是应用编排要解决的问题。
从简单的 Prompt 到复杂的 Agent，从单轮对话到多步推理，应用编排是 LLM 落地的关键一环。
5.1 Prompt 工程与版本管理
Prompt 是 LLM 的"代码"，也需要版本管理和 A/B 测试。我们用 LangSmith 来管理：
from langsmith import Client
from datetime import datetime
import json
class PromptManager:
"""Prompt 版本管理器"""
def __init__(self, project_name: str):
self.client = Client()
self.project_name = project_name
def create_prompt(
self,
name: str,
template: str,
variables: list[str],
tags: list[str] = None,
description: str = "",
) -> str:
"""创建 Prompt 模板"""
prompt_data = {
"name": name,
"template": template,
"variables": variables,
"tags": tags or [],
"description": description,
"created_at": datetime.now().isoformat(),
"project": self.project_name,
}
# 保存到 LangSmith
prompt_id = self.client.create_prompt(
prompt_name=name, prompt_template=template, tags=tags
)
print(f"✅ Prompt '{name}' created with ID: {prompt_id}")
return prompt_id
def get_prompt(self, name: str, version: str = "latest") -> dict:
"""获取指定版本的 Prompt"""
return self.client.get_prompt(name, version=version)
def compare_versions(self, name: str, v1: str, v2: str):
"""对比两个版本的效果"""
prompt_v1 = self.get_prompt(name, v1)
prompt_v2 = self.get_prompt(name, v2)
# 获取评测数据
metrics_v1 = self.client.get_prompt_metrics(name, v1)
metrics_v2 = self.client.get_prompt_metrics(name, v2)
return {
"v1": {"prompt": prompt_v1, "metrics": metrics_v1},
"v2": {"prompt": prompt_v2, "metrics": metrics_v2},
"winner": v1 if metrics_v1["score"] > metrics_v2["score"] else v2,
}
# 使用示例
pm = PromptManager(project_name="customer-service")
# 创建客服 Prompt
pm.create_prompt(
name="customer-greeting",
template="""
你是一个专业的客服助手，名字叫小智。
用户信息：
- 姓名：{customer_name}
- VIP等级：{vip_level}
- 历史订单数：{order_count}
- 最近一次咨询：{last_inquiry}
请用友好、专业的语气回答用户问题。如果问题超出你的能力范围，请引导用户联系人工客服。
用户问题：{question}
你的回答：
""",
variables=["customer_name", "vip_level", "order_count", "last_inquiry", "question"],
tags=["customer-service", "greeting", "v2.0"],
description="客服问候模板 v2.0，增加了历史订单数和最近咨询信息",
)5.2 Chain 编排：多步骤推理
使用 LangChain 构建多步骤推理链：
from langchain.chains import LLMChain, SequentialChain
from langchain.prompts import PromptTemplate
from langchain_openai import ChatOpenAI
class CustomerServiceChain:
"""客服多步骤处理链"""
def __init__(self, llm):
self.llm = llm
self.chain = self._build_chain()
def _build_chain(self) -> SequentialChain:
"""构建处理链"""
# Step 1: 意图识别
intent_prompt = PromptTemplate(
input_variables=["question"],
template="""
分析用户问题的意图，从以下类别中选择一个：
- 订单查询
- 退换货
- 产品咨询
- 投诉建议
- 其他
用户问题：{question}
意图分类：""",
)
intent_chain = LLMChain(llm=self.llm, prompt=intent_prompt, output_key="intent")
# Step 2: 信息提取
extract_prompt = PromptTemplate(
input_variables=["question", "intent"],
template="""从用户问题中提取关键信息。
意图：{intent}
问题：{question}
请提取以下信息（JSON格式）：
- 订单号（如果有）
- 产品名称（如果有）
- 时间信息（如果有）
- 其他关键信息
提取结果：
""",
)
extract_chain = LLMChain(
llm=self.llm, prompt=extract_prompt, output_key="extracted_info"
)
# Step 3: 生成回复
response_prompt = PromptTemplate(
input_variables=["question", "intent", "extracted_info"],
template="""
基于以下信息生成专业的客服回复：
用户问题：{question}
意图分类：{intent}
提取信息：{extracted_info}
要求：
1. 语气友好、专业
2. 如果信息不足，礼貌地询问补充信息
3. 提供明确的解决方案或后续步骤
客服回复：
""",
)
response_chain = LLMChain(
llm=self.llm, prompt=response_prompt, output_key="response"
)
# 组合成顺序链
overall_chain = SequentialChain(
chains=[intent_chain, extract_chain, response_chain],
input_variables=["question"],
output_variables=["intent", "extracted_info", "response"],
verbose=True,
)
return overall_chain
def process(self, question: str) -> dict:
"""处理用户问题"""
return self.chain({"question": question})
# 使用示例
llm = ChatOpenAI(model="gpt-4", temperature=0.7)
service_chain = CustomerServiceChain(llm)
result = service_chain.process("我的订单 #12345 已经3天了还没发货，怎么回事？")
print(f"意图：{result['intent']}")
print(f"提取信息：{result['extracted_info']}")
print(f"回复：{result['response']}")5.3 Agent 编排：自主决策与工具调用
使用 LangGraph 构建具有自主决策能力的 Agent：
from typing import TypedDict, Annotated, Sequence
from langchain_core.messages import BaseMessage, HumanMessage, AIMessage
from langgraph.graph import StateGraph, END
from langgraph.prebuilt import ToolExecutor, ToolInvocation
import operator
# 定义状态
class AgentState(TypedDict):
messages: Annotated[Sequence[BaseMessage], operator.add]
next_action: str
# 定义工具
def search_order(order_id: str) -> dict:
"""查询订单信息"""
# 实际项目中调用订单系统 API
return {
"order_id": order_id,
"status": "已发货",
"tracking_number": "SF1234567890",
"estimated_delivery": "2025-06-03",
}
def search_product(product_name: str) -> dict:
"""查询产品信息"""
return {"name": product_name, "price": 299.00, "stock": 156, "rating": 4.8}
def create_ticket(issue: str, priority: str = "normal") -> dict:
"""创建工单"""
return {
"ticket_id": "TK20250601001",
"status": "已创建",
"priority": priority,
"estimated_response": "2小时内",
}
# 工具列表
tools = [search_order, search_product, create_ticket]
tool_executor = ToolExecutor(tools)
# 定义节点
def call_model(state: AgentState):
"""调用模型决策下一步"""
messages = state["messages"]
# 这里简化处理，实际项目中会调用 LLM 判断
last_message = messages[-1].content
if "订单" in last_message and "#" in last_message:
return {
"next_action": "search_order",
"messages": [AIMessage(content="正在查询订单信息...")],
}
elif "产品" in last_message or "价格" in last_message:
return {
"next_action": "search_product",
"messages": [AIMessage(content="正在查询产品信息...")],
}
elif "投诉" in last_message or "问题" in last_message:
return {
"next_action": "create_ticket",
"messages": [AIMessage(content="正在为您创建工单...")],
}
else:
return {
"next_action": "respond",
"messages": [AIMessage(content="我理解您的问题，让我为您处理...")],
}
def execute_tool(state: AgentState):
"""执行工具调用"""
action = state["next_action"]
last_message = state["messages"][-2].content # 用户消息
if action == "search_order":
# 提取订单号
import re
order_id = re.search(r"#(\w+)", last_message).group(1)
result = search_order(order_id)
message = f"订单 #{result['order_id']} 状态：{result['status']}，快递单号：{result['tracking_number']}，预计送达：{result['estimated_delivery']}"
elif action == "search_product":
result = search_product("示例产品")
message = f"产品信息：{result['name']}，价格：¥{result['price']}，库存：{result['stock']}件，评分：{result['rating']}⭐"
elif action == "create_ticket":
result = create_ticket(last_message, priority="high")
message = f"已为您创建工单 {result['ticket_id']}，优先级：{result['priority']}，预计响应时间：{result['estimated_response']}"
else:
message = "我会尽快为您处理这个问题。"
return {"messages": [AIMessage(content=message)]}
def should_continue(state: AgentState) -> str:
"""判断是否继续"""
action = state.get("next_action", "")
if action in ["search_order", "search_product", "create_ticket"]:
return "execute"
else:
return "end"
# 构建图
workflow = StateGraph(AgentState)
# 添加节点
workflow.add_node("agent", call_model)
workflow.add_node("execute", execute_tool)
# 设置入口
workflow.set_entry_point("agent")
# 添加边
workflow.add_conditional_edges(
"agent", should_continue, {"execute": "execute", "end": END}
)
workflow.add_edge("execute", END)
# 编译
app = workflow.compile()
# 使用示例
def run_agent(user_input: str):
"""运行 Agent"""
result = app.invoke(
{"messages": [HumanMessage(content=user_input)], "next_action": ""}
)
for msg in result["messages"]:
print(f"{msg.__class__.__name__}: {msg.content}")
# 测试
run_agent("我的订单 #12345 什么时候能到？")5.4 RAG 架构：知识增强生成
构建企业级 RAG 系统：
from langchain.vectorstores import Chroma
from langchain.embeddings import OpenAIEmbeddings
from langchain.text_splitter import RecursiveCharacterTextSplitter
from langchain.document_loaders import DirectoryLoader
from langchain.chains import RetrievalQA
from langchain_openai import ChatOpenAI
import chromadb
class EnterpriseRAG:
"""企业级 RAG 系统"""
def __init__(
self,
collection_name: str,
embedding_model: str = "text-embedding-3-small",
persist_directory: str = "./chroma_db",
):
self.collection_name = collection_name
self.embeddings = OpenAIEmbeddings(model=embedding_model)
self.persist_directory = persist_directory
# 初始化向量数据库
self.vectorstore = Chroma(
collection_name=collection_name,
embedding_function=self.embeddings,
persist_directory=persist_directory,
)
def ingest_documents(self, docs_path: str, chunk_size: int = 1000):
"""导入文档到向量数据库"""
# 加载文档
loader = DirectoryLoader(docs_path, glob="**/*.md")
documents = loader.load()
# 分块
text_splitter = RecursiveCharacterTextSplitter(
chunk_size=chunk_size,
chunk_overlap=200,
separators=["\n\n", "\n", "。", "！", "？", ".", "!", "?", " ", ""],
)
chunks = text_splitter.split_documents(documents)
# 添加元数据
for i, chunk in enumerate(chunks):
chunk.metadata["chunk_id"] = i
chunk.metadata["source_file"] = chunk.metadata.get("source", "unknown")
# 存入向量数据库
self.vectorstore.add_documents(chunks)
self.vectorstore.persist()
print(f"✅ 已导入 {len(documents)} 个文档，分割为 {len(chunks)} 个块")
def query(
self, question: str, top_k: int = 3, score_threshold: float = 0.7
) -> dict:
"""查询知识库"""
# 1. 检索相关文档
docs_with_scores = self.vectorstore.similarity_search_with_score(
question, k=top_k
)
# 2. 过滤低分文档
filtered_docs = [
(doc, score) for doc, score in docs_with_scores if score >= score_threshold
]
if not filtered_docs:
return {
"answer": "抱歉，我在知识库中没有找到相关信息。",
"sources": [],
"confidence": 0.0,
}
# 3. 构建上下文
context_parts = []
sources = []
for doc, score in filtered_docs:
context_parts.append(doc.page_content)
sources.append(
{
"file": doc.metadata.get("source_file", "unknown"),
"chunk_id": doc.metadata.get("chunk_id", -1),
"score": float(score),
}
)
context = "\n\n---\n\n".join(context_parts)
# 4. 生成回答
llm = ChatOpenAI(model="gpt-4", temperature=0.3)
prompt = f"""基于以下知识库内容回答问题。如果知识库中没有相关信息，请明确说明。
知识库内容：
{context}
用户问题：{question}
要求：
1. 回答要准确、专业
2. 如果有多个相关信息，请综合回答
3. 引用具体的知识库内容
4. 如果不确定，请说明
你的回答："""
answer = llm.invoke(prompt).content
return {
"answer": answer,
"sources": sources,
"confidence": sum(s["score"] for s in sources) / len(sources),
}
def hybrid_search(self, question: str, top_k: int = 5) -> list:
"""混合检索：向量检索 + 关键词检索"""
# 向量检索
vector_results = self.vectorstore.similarity_search(question, k=top_k)
# 关键词检索（简化版，实际项目中用 BM25）
import jieba
keywords = jieba.lcut(question)
keyword_results = []
for keyword in keywords:
results = self.vectorstore.similarity_search(keyword, k=2)
keyword_results.extend(results)
# 合并去重
all_results = vector_results + keyword_results
unique_results = list({doc.page_content: doc for doc in all_results}.values())
return unique_results[:top_k]
# 使用示例
rag = EnterpriseRAG(collection_name="company_knowledge")
# 导入文档
rag.ingest_documents("./docs/knowledge_base")
# 查询
result = rag.query("公司的退货政策是什么？")
print(f"回答：{result['answer']}")
print(f"置信度：{result['confidence']:.2f}")
print(f"来源：{result['sources']}")
5.5 应用编排最佳实践
from dataclasses import dataclass
from enum import Enum
class OrchestrationPattern(Enum):
"""编排模式"""
SIMPLE_PROMPT = "simple_prompt" # 单次 Prompt
CHAIN = "chain" # 顺序链
AGENT = "agent" # 自主 Agent
RAG = "rag" # 知识增强
HYBRID = "hybrid" # 混合模式
@dataclass
class OrchestrationDecision:
"""编排决策"""
pattern: OrchestrationPattern
reason: str
estimated_cost: float
estimated_latency: float
def choose_orchestration(
task_complexity: str, # simple / medium / complex
need_external_knowledge: bool,
need_tools: bool,
latency_requirement: float, # seconds
) -> OrchestrationDecision:
"""选择合适的编排模式"""
# 决策树
if task_complexity == "simple" and not need_external_knowledge and not need_tools:
return OrchestrationDecision(
pattern=OrchestrationPattern.SIMPLE_PROMPT,
reason="任务简单，单次调用即可",
estimated_cost=0.002,
estimated_latency=0.5,
)
if need_external_knowledge and not need_tools:
return OrchestrationDecision(
pattern=OrchestrationPattern.RAG,
reason="需要外部知识，使用 RAG",
estimated_cost=0.005,
estimated_latency=1.2,
)
if task_complexity == "medium" and not need_tools:
return OrchestrationDecision(
pattern=OrchestrationPattern.CHAIN,
reason="中等复杂度，使用多步骤链",
estimated_cost=0.008,
estimated_latency=2.0,
)
if need_tools or task_complexity == "complex":
return OrchestrationDecision(
pattern=OrchestrationPattern.AGENT,
reason="需要工具调用或任务复杂，使用 Agent",
estimated_cost=0.015,
estimated_latency=3.5,
)
# 默认混合模式
return OrchestrationDecision(
pattern=OrchestrationPattern.HYBRID,
reason="综合场景，使用混合模式",
estimated_cost=0.012,
estimated_latency=2.5,
)
# 使用示例
decision = choose_orchestration(
task_complexity="complex",
need_external_knowledge=True,
need_tools=True,
latency_requirement=5.0,
)
print(f"推荐模式：{decision.pattern.value}")
print(f"原因：{decision.reason}")
print(f"预估成本：¥{decision.estimated_cost}")
print(f"预估延迟：{decision.estimated_latency}s")六、推理服务
6.1 vLLM 部署
vLLM 是目前最主流的推理引擎，PagedAttention 让吞吐量翻倍：
# docker-compose-vllm.yaml
version: '3.8'
services:
vllm-server:
image: vllm/vllm-openai:latest
container_name: vllm-server
ports:
- "8000:8000"
command: >
--model /models/qwen2.5-7b
--served-model-name customer-service-llm
--host 0.0.0.0
--port 8000
--tensor-parallel-size 2
--gpu-memory-utilization 0.9
--max-model-len 8192
--dtype auto
--enable-prefix-caching
--trust-remote-code
volumes:
- ./models:/models
deploy:
resources:
reservations:
devices:
- driver: nvidia
count: 2
capabilities: [gpu]
environment:
- CUDA_VISIBLE_DEVICES=0,1
restart: unless-stopped
healthcheck:
test: ["CMD", "curl", "-f", "http://localhost:8000/health"]
interval: 30s
timeout: 10s
retries: 36.2 推理服务架构
一个完整的推理服务不只是 vLLM，还需要网关、缓存、降级：
6.3 推理路由与降级
from enum import Enum
from dataclasses import dataclass
from typing import Optional
import time
import random
class ModelTier(Enum):
PRIMARY = "primary" # 主力模型：Qwen2.5-72B
SECONDARY = "secondary" # 备选模型：Qwen2.5-7B
FALLBACK = "fallback" # 降级模型：Qwen2.5-1.5B
@dataclass
class ModelEndpoint:
name: str
tier: ModelTier
url: str
max_tokens: int
cost_per_1k_tokens: float
is_healthy: bool = True
current_load: float = 0.0
class InferenceRouter:
"""推理路由器：根据场景选择合适的模型"""
def __init__(self):
self.endpoints = [
ModelEndpoint(
name="qwen-72b-primary",
tier=ModelTier.PRIMARY,
url="http://vllm-01:8000",
max_tokens=8192,
cost_per_1k_tokens=0.012,
),
ModelEndpoint(
name="qwen-7b-secondary",
tier=ModelTier.SECONDARY,
url="http://vllm-02:8000",
max_tokens=4096,
cost_per_1k_tokens=0.002,
),
ModelEndpoint(
name="qwen-1.5b-fallback",
tier=ModelTier.FALLBACK,
url="http://vllm-fallback:8000",
max_tokens=2048,
cost_per_1k_tokens=0.0005,
),
]
def route(
self,
prompt: str,
max_tokens: int = 2048,
priority: str = "balanced", # quality / cost / balanced
enable_fallback: bool = True,
) -> ModelEndpoint:
"""路由决策"""
# 过滤不可用的端点
available = [ep for ep in self.endpoints if ep.is_healthy]
if not available:
raise RuntimeError("No healthy model endpoints available")
# 根据优先级排序
if priority == "quality":
# 质量优先：从大到小
candidates = sorted(
available, key=lambda x: x.cost_per_1k_tokens, reverse=True
)
elif priority == "cost":
# 成本优先：从小到大
candidates = sorted(available, key=lambda x: x.cost_per_1k_tokens)
else:
# 均衡：考虑负载
candidates = sorted(available, key=lambda x: x.current_load)
# 选择第一个满足 max_tokens 要求的
for ep in candidates:
if ep.max_tokens >= max_tokens:
return ep
# 降级：如果都满足不了，选最大的
if enable_fallback:
return max(available, key=lambda x: x.max_tokens)
raise RuntimeError(f"No endpoint supports max_tokens={max_tokens}")
七、可观测性
7.1 三大支柱
┌─────────────────────────────────────────────────────────┐
│ LLM 可观测性三大支柱 │
├─────────────────────────────────────────────────────────┤
│ │
│ ┌─────────────┐ ┌─────────────┐ ┌─────────────┐ │
│ │ 指标 │ │ 日志 │ │ 追踪 │ │
│ │ Metrics │ │ Logs │ │ Traces │ │
│ │ │ │ │ │ │ │
│ │ ·QPS │ │ ·请求日志 │ │ ·调用链路 │ │
│ │ ·延迟P50/95 │ │ ·响应内容 │ │ ·Token分布 │ │
│ │ ·Token用量 │ │ ·错误详情 │ │ ·模型版本 │ │
│ │ ·成本 │ │ ·审核日志 │ │ ·缓存命中 │ │
│ │ ·缓存命中率 │ │ │ │ │ │
│ └─────────────┘ └─────────────┘ └─────────────┘ │
│ │
│ ┌─────────────────────────────────────────────────┐ │
│ │ 告警 & 看板 │ │
│ │ ·Grafana Dashboard │ │
│ │ ·企业微信/飞书告警 │ │
│ │ ·成本日报/周报 │ │
│ └─────────────────────────────────────────────────┘ │
└─────────────────────────────────────────────────────────┘7.2 核心指标采集
from prometheus_client import Counter, Histogram, Gauge, start_http_server
import time
# 定义指标
LLM_REQUEST_TOTAL = Counter(
"llm_request_total", "Total LLM API requests", ["model", "status", "endpoint"]
)
LLM_REQUEST_DURATION = Histogram(
"llm_request_duration_seconds",
"LLM request duration in seconds",
["model"],
buckets=[0.5, 1.0, 2.0, 3.0, 5.0, 10.0, 30.0],
)
LLM_TOKEN_USAGE = Counter(
"llm_token_usage_total",
"Total tokens used",
["model", "token_type"], # token_type: input / output
)
LLM_COST_TOTAL = Counter(
"llm_cost_total_yuan", "Total cost in yuan", ["model", "project"]
)
LLM_CACHE_HIT = Counter(
"llm_cache_hit_total", "Cache hit count", ["cache_type"] # exact / semantic
)
LLM_ACTIVE_REQUESTS = Gauge(
"llm_active_requests", "Currently active requests", ["model"]
)
class LLMMetricsMiddleware:
"""LLM 指标中间件"""
def __init__(self, model_name: str, project: str = "default"):
self.model_name = model_name
self.project = project
def __call__(self, func):
def wrapper(*args, **kwargs):
LLM_ACTIVE_REQUESTS.labels(model=self.model_name).inc()
start_time = time.time()
try:
result = func(*args, **kwargs)
# 记录成功请求
LLM_REQUEST_TOTAL.labels(
model=self.model_name, status="success", endpoint="chat"
).inc()
# 记录 Token 用量
if hasattr(result, "usage"):
LLM_TOKEN_USAGE.labels(
model=self.model_name, token_type="input"
).inc(result.usage.prompt_tokens)
LLM_TOKEN_USAGE.labels(
model=self.model_name, token_type="output"
).inc(result.usage.completion_tokens)
# 记录成本
cost = self._calculate_cost(result.usage)
LLM_COST_TOTAL.labels(
model=self.model_name, project=self.project
).inc(cost)
return result
except Exception as e:
LLM_REQUEST_TOTAL.labels(
model=self.model_name, status="error", endpoint="chat"
).inc()
raise
finally:
duration = time.time() - start_time
LLM_REQUEST_DURATION.labels(model=self.model_name).observe(duration)
LLM_ACTIVE_REQUESTS.labels(model=self.model_name).dec()
return wrapper
def _calculate_cost(self, usage) -> float:
"""计算单次调用成本（元）"""
# 不同模型不同价格，这里示例
pricing = {
"qwen2.5-72b": {"input": 0.004, "output": 0.012},
"qwen2.5-7b": {"input": 0.001, "output": 0.002},
"deepseek-v3": {"input": 0.002, "output": 0.006},
}
p = pricing.get(self.model_name, {"input": 0.002, "output": 0.006})
input_cost = (usage.prompt_tokens / 1000) * p["input"]
output_cost = (usage.completion_tokens / 1000) * p["output"]
return input_cost + output_cost
# 启动 metrics server
start_http_server(9090)7.3 Grafana Dashboard 配置
核心看板指标：
{
"dashboard": {
"title": "LLM Ops Monitor",
"panels": [
{
"title": "QPS by Model",
"type": "timeseries",
"targets": [
{
"expr": "rate(llm_request_total[5m])"
}
]
},
{
"title": "P95 Latency",
"type": "stat",
"targets": [
{
"expr": "histogram_quantile(0.95, rate(llm_request_duration_seconds_bucket[5m]))"
}
]
},
{
"title": "Token Usage (24h)",
"type": "piechart",
"targets": [
{
"expr": "sum(llm_token_usage_total) by (token_type)"
}
]
},
{
"title": "Daily Cost Trend",
"type": "timeseries",
"targets": [
{
"expr": "sum(increase(llm_cost_total_yuan[1d])) by (model)"
}
]
},
{
"title": "Error Rate",
"type": "gauge",
"targets": [
{
"expr": "rate(llm_request_total{status=\"error\"}[5m]) / rate(llm_request_total[5m])"
}
],
"thresholds": {
"steps": [
{ "value": 0, "color": "green" },
{ "value": 0.05, "color": "yellow" },
{ "value": 0.1, "color": "red" }
]
}
}
]
}
}八、成本管理
8.1 成本监控告警
# cost_alert_rules.yaml
groups:
- name: llm_cost_alerts
rules:
# 单日成本超限
- alert: DailyCostExceeded
expr: sum(increase(llm_cost_total_yuan[24h])) > 5000
for: 5m
labels:
severity: warning
annotations:
summary: "日成本超限"
description: "过去24小时LLM调用成本超过5000元"
# 单个模型成本异常
- alert: ModelCostAnomaly
expr: |
(sum(increase(llm_cost_total_yuan[1h])) by (model)
/ sum(increase(llm_cost_total_yuan[1h] offset 24h)) by (model))
> 2.0
for: 10m
labels:
severity: warning
annotations:
summary: "模型成本同比异常"
description: "{{ $labels.model }} 过去1小时成本是昨日同期的2倍以上"
# 单用户配额超限
- alert: UserQuotaExceeded
expr: sum(increase(llm_cost_total_yuan[24h])) by (project) > 1000
for: 5m
labels:
severity: info
annotations:
summary: "项目配额超限"
description: "项目 {{ $labels.project }} 24小时内成本超过1000元"8.2 成本优化策略
九、CI/CD

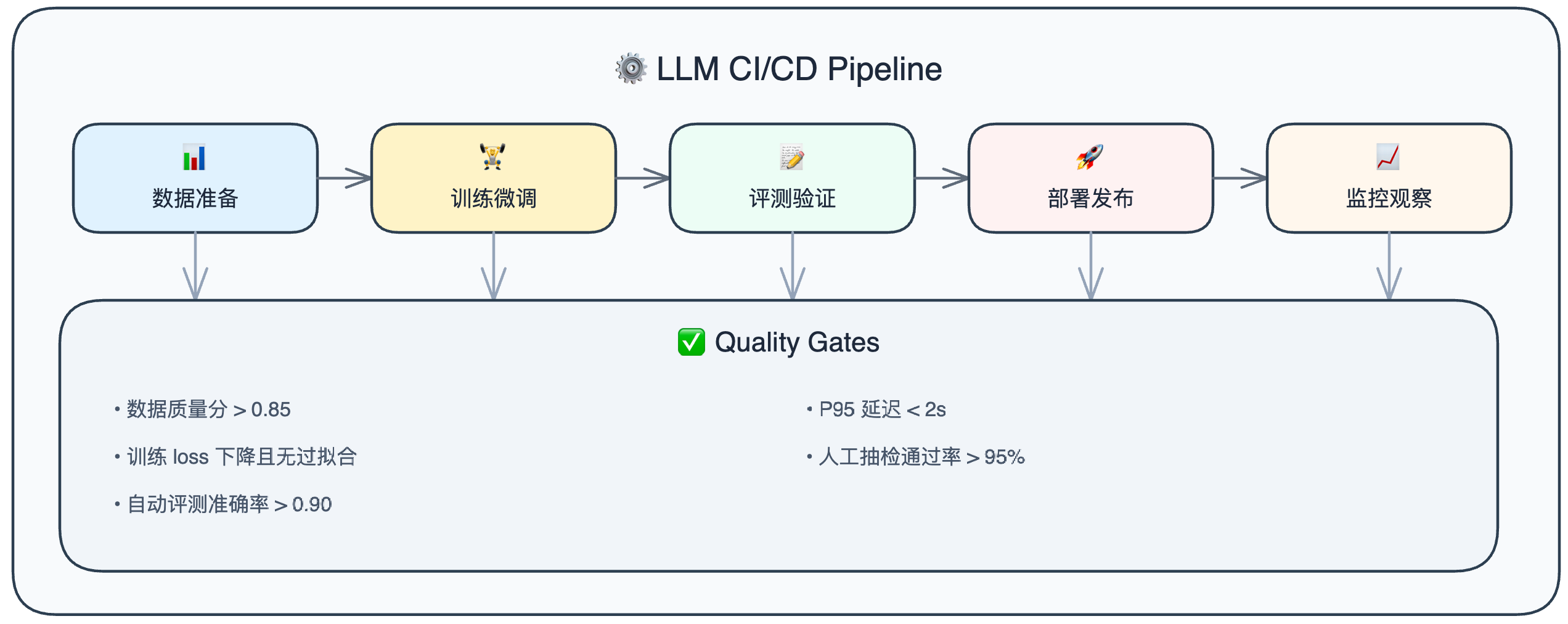

9.1 LLM 流水线架构
9.2 GitLab CI 配置
# .gitlab-ci.yml - LLM 模型发布流水线
stages:
- data_validation
- fine_tune
- evaluation
- staging_deploy
- production_deploy
variables:
MODEL_NAME: "customer-service-llm"
BASE_MODEL: "Qwen/Qwen2.5-7B-Instruct"
MLFLOW_TRACKING_URI: "http://mlflow-server:5000"
# 阶段1：数据校验
data_validation:
stage: data_validation
image: python:3.11
script:
- pip install pandas pydantic
- python scripts/validate_dataset.py --input data/train.jsonl
- python scripts/data_quality_score.py --threshold 0.85
rules:
- changes:
- data/**
# 阶段2：微调训练
fine_tune:
stage: fine_tune
image: nvidia/cuda:12.1.0-runtime-ubuntu22.04
script:
- pip install torch transformers peft trl datasets
- python scripts/fine_tune.py
--base_model $BASE_MODEL
--dataset data/train.jsonl
--method lora
--output_dir ./model_output
--epochs 3
--learning_rate 2e-4
- python scripts/log_to_mlflow.py --model_path ./model_output
artifacts:
paths:
- ./model_output/
expire_in: 7 days
rules:
- when: manual # 训练需要手动触发
tags:
- gpu-a100
# 阶段3：自动评测
evaluation:
stage: evaluation
image: python:3.11
script:
- pip install mlflow openai
- python scripts/evaluate_model.py
--model_path ./model_output
--eval_dataset data/eval.jsonl
--metrics accuracy,bleu,rouge_l
--threshold accuracy:0.90
- python scripts/latency_benchmark.py
--model_path ./model_output
--max_p95_latency 2.0
needs:
- fine_tune
rules:
- when: on_success
# 阶段4：Staging 部署
staging_deploy:
stage: staging_deploy
image: bitnami/kubectl
script:
- kubectl config use-context staging
- kubectl set image deployment/vllm-server
vllm=$MODEL_NAME:$CI_COMMIT_SHORT_SHA
-n llm-staging
- kubectl rollout status deployment/vllm-server -n llm-staging
- python scripts/smoke_test.py --env staging
needs:
- evaluation
environment:
name: staging
url: https://llm-staging.internal.company.com
rules:
- when: on_success
# 阶段5：Production 部署
production_deploy:
stage: production_deploy
image: bitnami/kubectl
script:
# 灰度发布：先切5%流量
- kubectl config use-context production
- kubectl apply -f k8s/canary-deployment.yaml
- sleep 300 # 观察5分钟
- python scripts/canary_metrics_check.py --threshold 0.02
# 全量发布
- kubectl apply -f k8s/production-deployment.yaml
- kubectl rollout status deployment/vllm-server -n llm-production
needs:
- staging_deploy
environment:
name: production
url: https://llm.internal.company.com
rules:
- when: manual # 生产发布必须手动确认
only:
- main十、安全合规
10.1 内容审核
大模型的输出不可控，必须加审核层：
from enum import Enum
from dataclasses import dataclass
from typing import Optional
class RiskLevel(Enum):
SAFE = "safe"
LOW = "low"
MEDIUM = "medium"
HIGH = "high"
BLOCKED = "blocked"
@dataclass
class ModerationResult:
risk_level: RiskLevel
categories: list
confidence: float
reason: str
filtered_content: Optional[str] = None
class ContentModerator:
"""内容审核器"""
# 敏感词列表（实际项目中从数据库/配置中心加载）
SENSITIVE_PATTERNS = {
"politics": ["政治敏感词1", "政治敏感词2"],
"violence": ["暴力关键词1", "暴力关键词2"],
"privacy": ["身份证", "银行卡号", "手机号"],
"competitor": ["竞品名称1", "竞品名称2"],
}
def moderate_input(self, text: str) -> ModerationResult:
"""审核用户输入"""
# 1. 正则规则引擎
for category, patterns in self.SENSITIVE_PATTERNS.items():
for pattern in patterns:
if pattern in text:
return ModerationResult(
risk_level=RiskLevel.HIGH,
categories=[category],
confidence=0.95,
reason=f"匹配敏感规则: {category}",
)
# 2. PII 检测
import re
pii_patterns = {
"phone": r"1[3-9]\d{9}",
"id_card": r"\d{17}[\dXx]",
"bank_card": r"\d{16,19}",
}
for pii_type, pattern in pii_patterns.items():
if re.search(pattern, text):
return ModerationResult(
risk_level=RiskLevel.MEDIUM,
categories=["pii"],
confidence=0.90,
reason=f"检测到PII信息: {pii_type}",
)
# 3. 调用审核模型（如通义内容安全API）
# result = call_moderation_api(text)
return ModerationResult(
risk_level=RiskLevel.SAFE,
categories=[],
confidence=0.99,
reason="通过所有审核规则",
)
def moderate_output(self, text: str) -> ModerationResult:
"""审核模型输出"""
# 输出审核逻辑类似，但关注点不同
# 主要检查：幻觉、偏见、不当内容
return self.moderate_input(text)10.2 数据脱敏
import re
from typing import Callable
class DataMasker:
"""数据脱敏器"""
MASKERS: dict[str, Callable] = {}
@classmethod
def register(cls, name: str):
"""注册脱敏规则"""
def decorator(func):
cls.MASKERS[name] = func
return func
return decorator
@classmethod
def mask(cls, text: str, rules: list[str] = None) -> str:
"""执行脱敏"""
rules = rules or list(cls.MASKERS.keys())
for rule in rules:
if rule in cls.MASKERS:
text = cls.MASKERS[rule](text)
return text
@DataMasker.register("phone")
def mask_phone(text: str) -> str:
"""手机号脱敏: 13812345678 → 138****5678"""
return re.sub(r"(1[3-9]\d)\d{4}(\d{4})", r"\1****\2", text)
@DataMasker.register("email")
def mask_email(text: str) -> str:
"""邮箱脱敏: test@example.com → t***@example.com"""
return re.sub(r"(\w)\w+(@\S+)", r"\1***\2", text)
@DataMasker.register("id_card")
def mask_id_card(text: str) -> str:
"""身份证脱敏: 310101199001011234 → 3101**********1234"""
return re.sub(r"(\d{4})\d{10}(\d{4})", r"\1**********\2", text)
# 使用示例
raw_text = "用户手机号13812345678，邮箱test@example.com，身份证310101199001011234"
masked = DataMasker.mask(raw_text)
print(masked)
# 输出: 用户手机号138****5678，邮箱t***@example.com，身份证3101**********1234十一、总结
最后，给一个 LLM Ops 的成熟度模型，方便你评估自己团队在哪个阶段：
Level 0 ── 无意识
│ · 直接调用 API，没有任何工程化
│ · 没有版本管理，没有监控
│
Level 1 ── 规范化
│ · 有基本的 Prompt 管理
│ · 有简单的监控和告警
│ · 有成本追踪
│
Level 2 ── 自动化
│ · 自动评测流水线
│ · CI/CD for 模型
│ · 语义缓存、模型路由
│
Level 3 ── 平台化
│ · 统一 AI 平台
│ · 多租户、资源隔离
│ · 自助式模型服务
│
Level 4 ── 智能化
│ · 自动模型选择与调优
│ · 自适应缓存策略
│ · AIOps for LLM
│
Level 5 ── 生态化
· 模型市场
· 跨团队协作
· 产业级 AI 供应链大部分团队在 Level 0-1，头部团队在 Level 2-3，Level 4 以上目前几乎没有。
评论区
